My First PC Build

Posted Jul 12, 2025 Updated Jul 15, 2025

By Joel Marte

2 min read

Objective

In March of 2023 I decided to build a PC because my laptop was showing its age and I was getting into PC gaming. I wanted a build with a small form factor, sleek/minimalist, AMD CPU, iGPU (initally at least), good enough to do some gaming, be reasonably quiet and cost no more than $1000. These are vauge criterias but that was my starting point with what I wanted and knowledge at the time. I did not know where to start so I did some research and found some great resources and tips.

Hardware

Type	Item	Price
CPU	AMD Ryzen 5 5600G 3.9 GHz 6-Core Processor	Purchased For $135.00
CPU Cooler	Noctua NH-L9x65 33.84 CFM CPU Cooler	Purchased For $64.00
Motherboard	Gigabyte B550I AORUS PRO AX Mini ITX AM4 Motherboard	Purchased For $189.99
Memory	G.Skill Trident Z RGB 16 GB (2 x 8 GB) DDR4-3600 CL18 Memory	Purchased For $49.99
Storage	Samsung 970 Evo Plus 1 TB M.2-2280 PCIe 3.0 X4 NVME Solid State Drive	Purchased For $138.94
Storage	Samsung 980 Pro 1 TB M.2-2280 PCIe 4.0 X4 NVME Solid State Drive	Purchased For $149.99
Video Card	EVGA XC GAMING GeForce RTX 3060 12GB 12 GB Video Card	Purchased For $170.00
Case	Cooler Master MasterBox NR200P Mini ITX Desktop Case	Purchased For $131.00
Power Supply	EVGA SuperNOVA 650 GM 650 W 80+ Gold Certified Fully Modular SFX Power Supply	Purchased For $89.99
Operating System	Microsoft Windows 11 Home OEM - DVD 64-bit	$0.00
Case Fan	Noctua A9x14 29.72 CFM 92 mm Fan	Purchased For $26.00
Case Fan	Noctua A9x14 29.72 CFM 92 mm Fan	Purchased For $26.00
Case Fan	be quiet! Shadow Wings 2 38.5 CFM 120 mm Fan	Purchased For $16.89
Case Fan	be quiet! Shadow Wings 2 38.5 CFM 120 mm Fan	Purchased For $16.89
	Total	$1204.68

Different Fan configuration

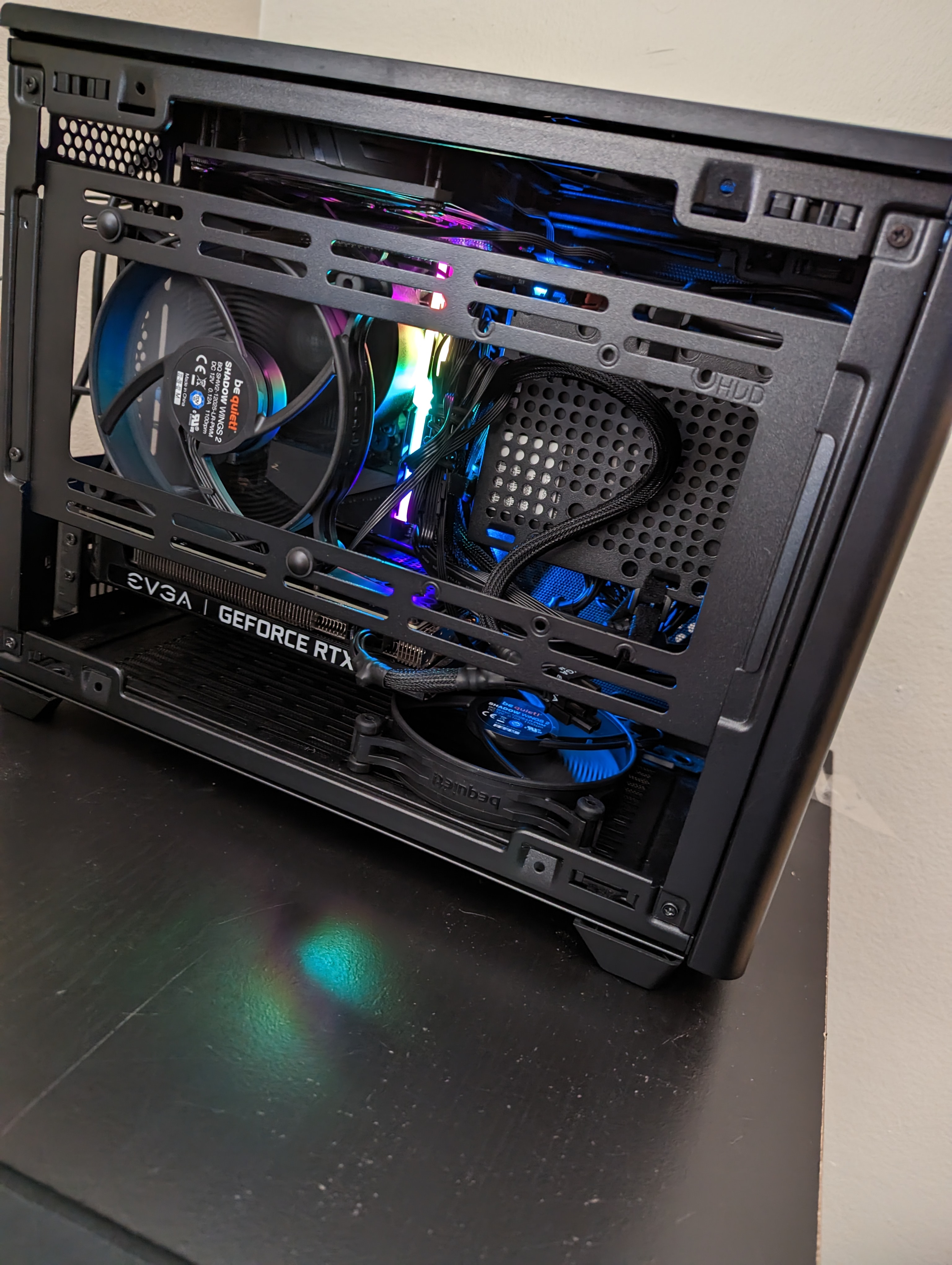

Config. 1

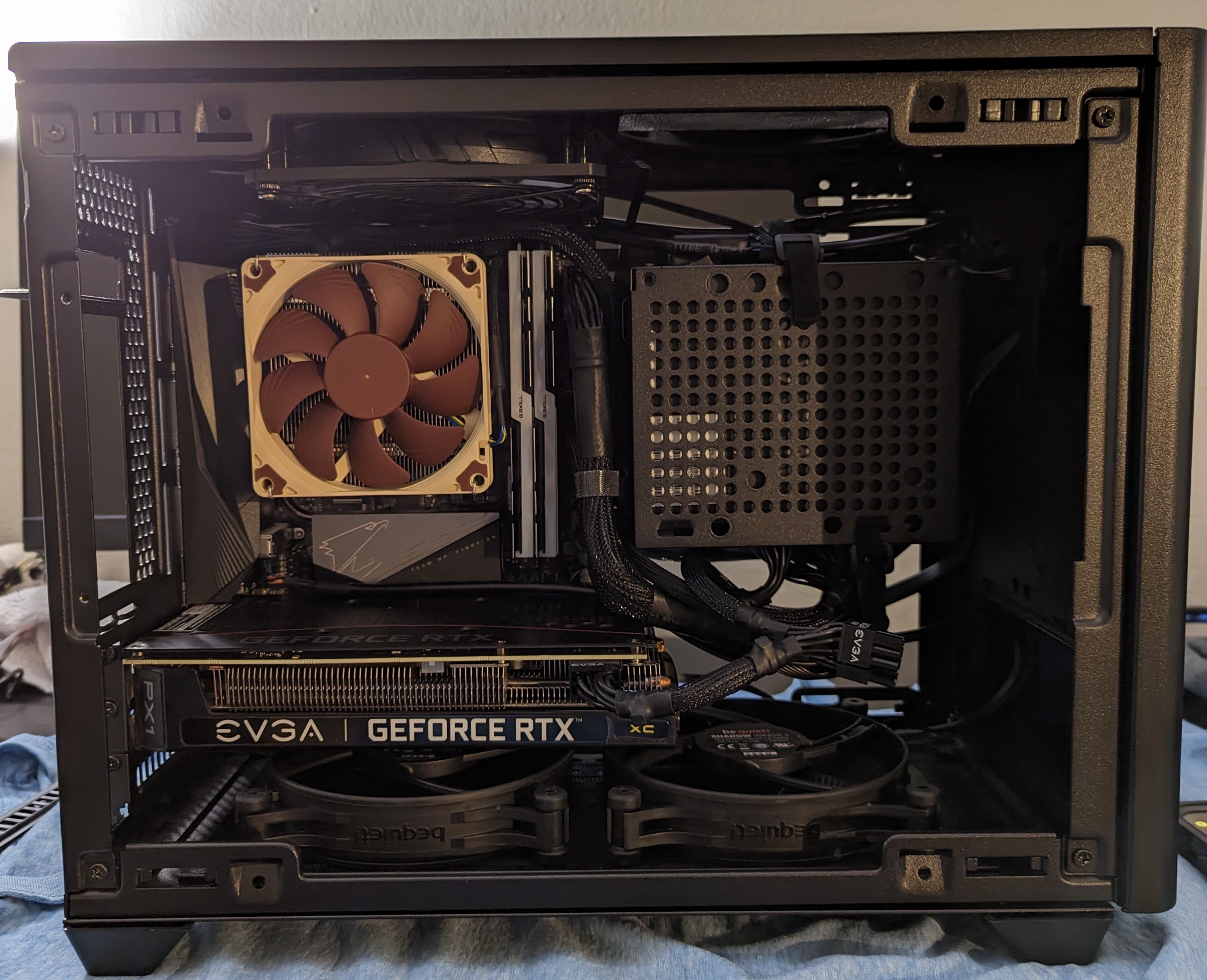

Config. 2

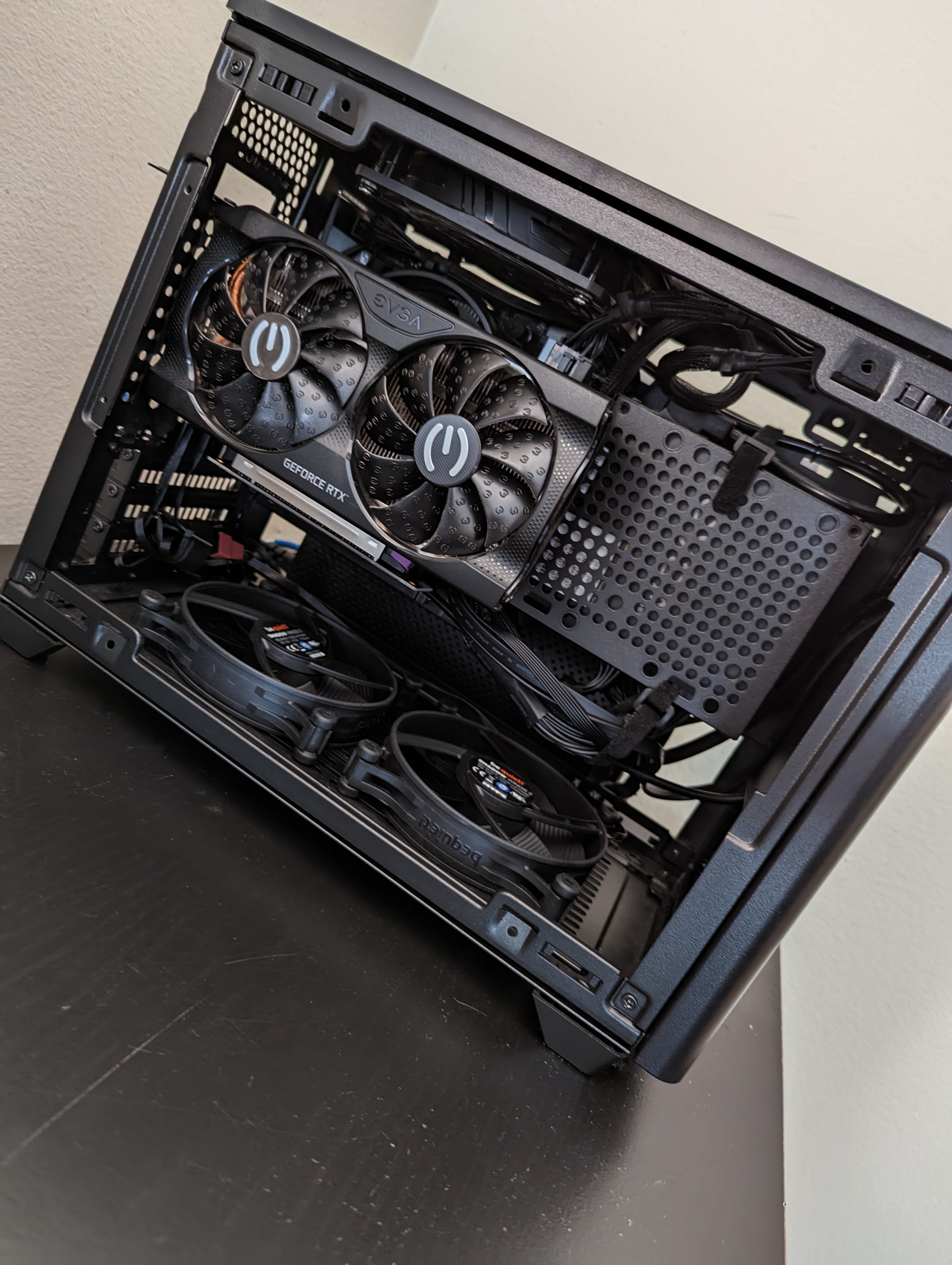

Config. 3

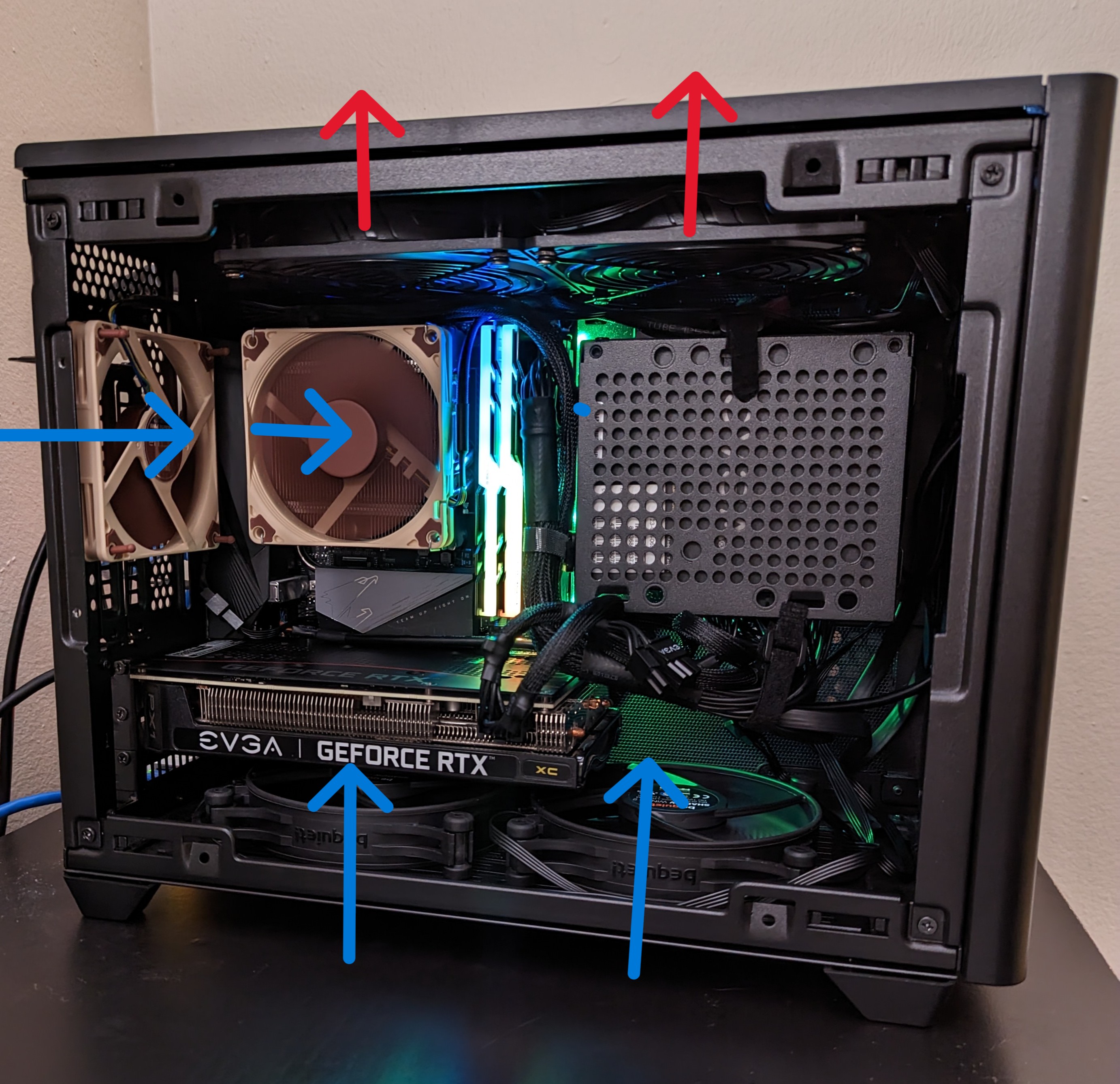

Final Config

Ultimately, this configuration gave me the best results. I was concerned the exhausted heat from the GPU would be a problem but it did not affect it as much as the other configurations. May look into water cooling when upgrading CPU in the future.

Resources
